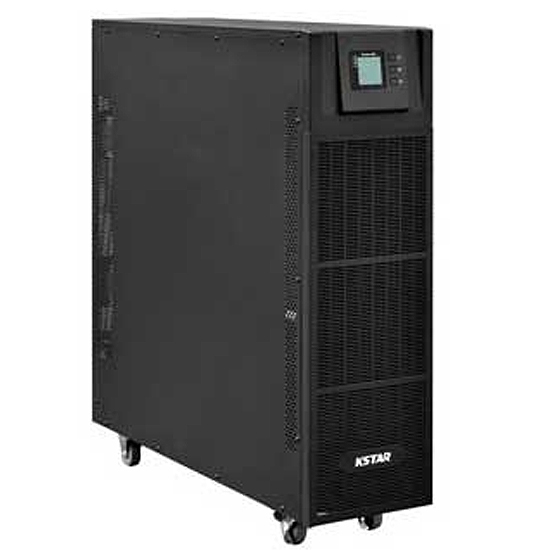

Kstar YDC3310S - Onduleur UPS Triphasé de 10KVA PF= 1,0
Chargement...
Product Description

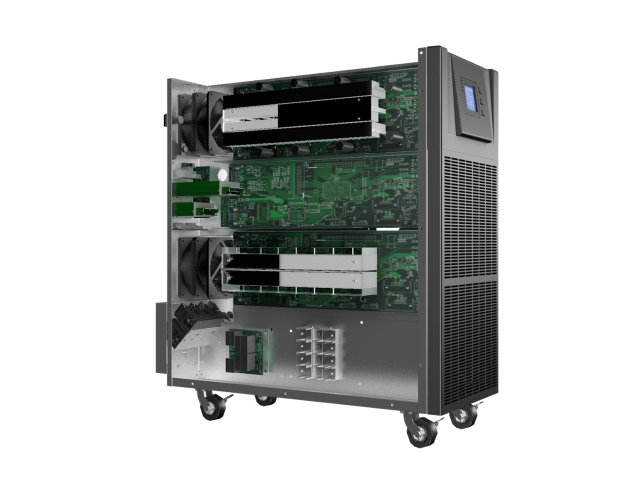

YDC3300 series UPS is a three-phase in and three-phase out high frequency UPS with medium and large power capacity. Equipped with three-level inverter topology, it results in high efficiency reaching 95.5%. With higher power density, smaller footprint, it takes the leading position in the UPS industry with same power capacity; Adopting unique power unit redundancy design technology, decrease the abnormity risk of system after single-point failure, greatly increase the system reliability. For user, it is your best choice with high investment rate.
Features
·High power density design
·N+X parallel redundancy,support maximum 4 units in parallel
·Online double conversion with DSP control
·Input crrent harmonic:<3%
·Wide input voltage range:208~478Vac
·Wide input frequency range 40~70Hz
·Optimization battery group,the quantity of battery
10~30kVA:16/18/20pcs (30~50pcs is optional)
40kVA:30~50pcs
·Maximum charging current up to 20A (Settable)
·Dual input source(optional for standard unit)
·Colorful 2.4 inch TFT LCD display and 7 inch LCD display LCD
are optional
·Versatile LCD human-computer interface
·Generator compatible
·ECO mode operation for energy saving
·Intelligent fan speed regulation
·Self-testing when UPS startup
·50/60Hz frequency converter mode
·The output can meet 100% unbalanced load
·Multiple protection function:short-circuit,overload,overheat,
battery overcharge and overdischarge,output low voltage
and fan fault alarm
·Multiple communication interface:USB, RS232,RS485,
Parallel port, Dry contact, Intelligent slot, SNMP card
(Optional), Relay card (Optional),Battery temperature
sensor (Optional)
